- This (UL) Plenum Rated cable consists of one pair of 18 AWG (gauge) 16 strand tinned copper conductors, insulated with FEP and the pair is shielded with a 100% coverage aluminum mylar shield and a stranded 24 AWG tinned copper drain wire and has a Red FEP Jacket The pair is color coded Black-White. The cable has a Red FEPJacket It is rated for 300 volts 200C. This cable is (UL) Certified type CMP and it is designed for indoor use.
- This cable is designed for use in low voltage analog circuits, low voltage digital control, computer communication intercom, sound, alarm and security circuits, and it is approved for installation per NEC Articles 800 type CMP Plenum rated. This can be used anywhere a stationary control circuit is needed up to 300 Volts and is designed for use in air plenums where low smoke and low toxicity in case of fire is required. This cable is not designed not rated for outdoor use or direct burial

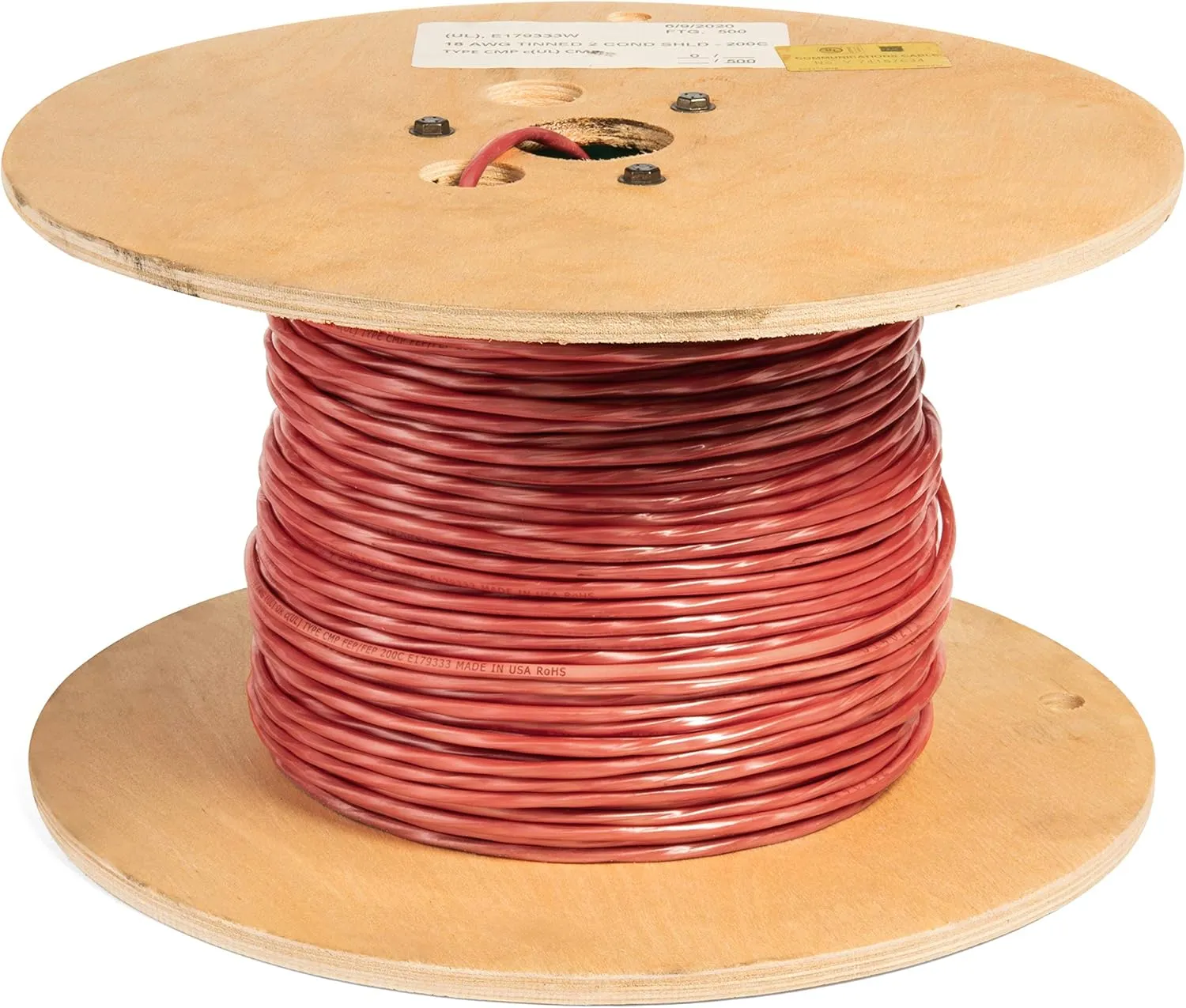

- This cable has a nominal OD of .160” and weighs 25# per 1000 feet. The cable has a handy rip cord to facilitate easy jacket removal. Footage markings have been added to the jacket so you can always determine the amount remaining on the spool. The cable ships on a 12” diameter plywood spool
- All EWCS products are proudly made in the USA! Have a job that needs another conductor or pair count or requires a different length? EWCS offers a selection of hundreds of electronic & fire alarm cables, rated Riser or Plenum in non-shielded or shielded configurations
